High-precision motion control with Bogen Magnetics’ miniaturized sensors
High-precision motion control with Bogen Magnetics’ miniaturized sensors
When space is limited and precision is critical, the choice of sensor makes all the difference. In sectors such as robotics, industrial automation, or medical technology, every millimeter and every microsecond counts. BOGEN Magnetics’ miniaturized encoders, the AKP18 (absolute) and IKP11 (incremental), are designed to fit into the tightest spaces without compromising performance, delivering reliable and accurate measurement even in the most demanding conditions.
The trend in the industry is clear: smaller, faster, and lighter machines capable of maintaining precise and consistent response. Miniaturization is no longer a challenge—it’s a competitive advantage. Integrating sensors like those from BOGEN allows you to optimize space, reduce weight, and maintain advanced motion control in critical applications.

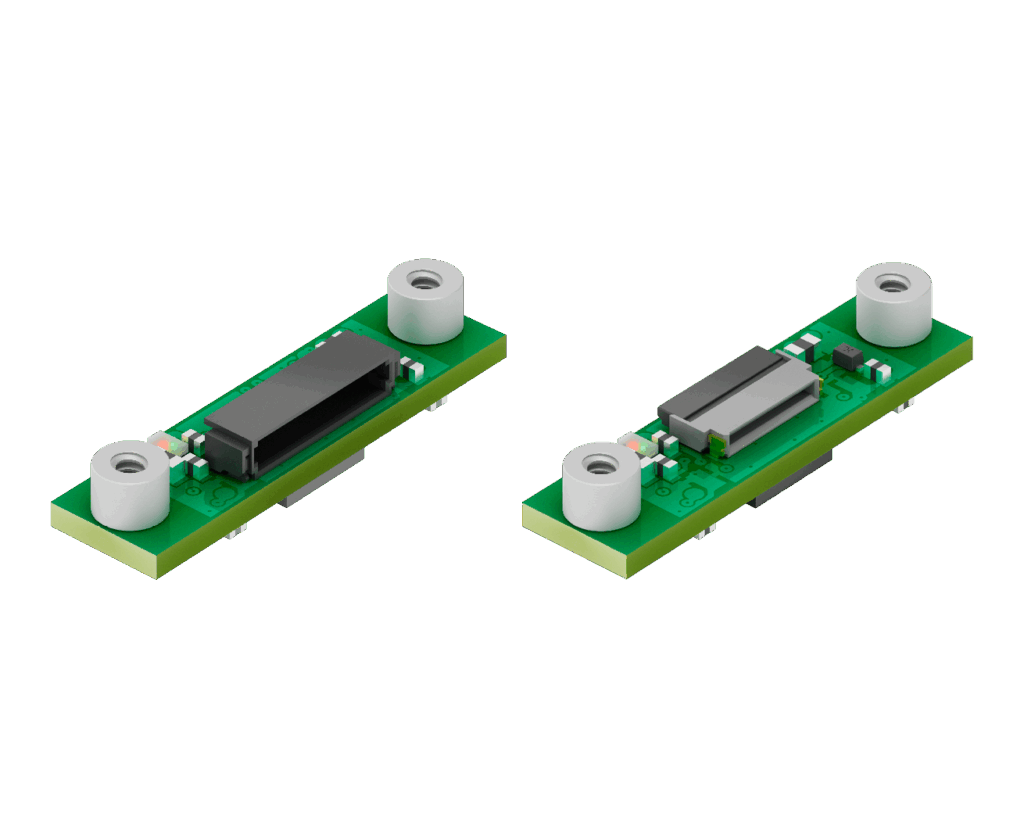

AKP18 - absolute sensor
The AKP18 is a magnetic linear and rotary encoder that provides absolute position from the very first moment, without any prior movement. Its compact PCB-mounted sensing head with dual orientation makes integration into complex designs easy.
Key features
- Measurement method: absolute
- Linear and rotary for magnetic strips and magnetic rings
- Resolution up to 20 bits (1,048,576 cpr)
- Interfaces: BiSS-C, SSI
- Kit format, PCBA
- Ideal for applications such as robotic grippers, surgical robots, and high-precision industrial automation

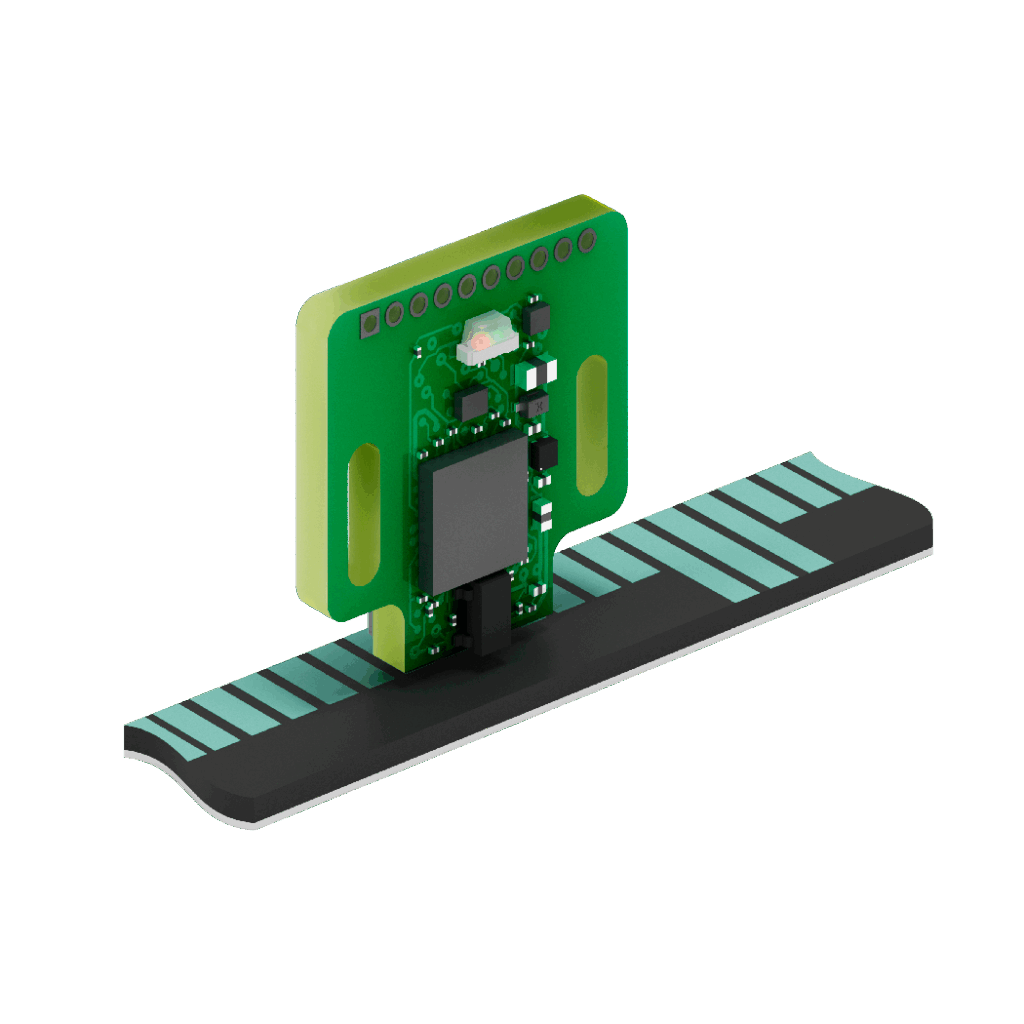

IKP11 - incremental sensor
The IKP11 is designed for those who need high-speed, real-time feedback. It is a magnetic linear and rotary encoder with reference detection, housed in an ultra-compact PCB head. It can be configured to suit almost any measurement requirement when paired with BOGEN’s precision scales.
Key features
- Measurement method: incremental with reference detection
- Linear and rotary for magnetic strips and magnetic rings
- Resolution up to 20 nm
- Options: DPI resolutions and distance-coded reference marks
- Kit format, PCBA
- Flexible interface with multiple configuration options
- Ideal for compact automation systems, high-speed motors, and medical devices
Key differences between absolute and incremental sensors
| Característica | Absoluto (AKP18) | Incremental (IKP11) |
|---|---|---|
| Posición al encender | Inmediata, sin movimiento | Requiere marca de referencia |
| Interfaz | BiSS-C, SSI | TTL, diferencial, etc. |
| Uso habitual | Control de alta precisión | Retroalimentación en tiempo real a alta velocidad |
Advantages of miniaturization
The integration of smaller sensors opens up possibilities that were previously limited by space or weight:
- Space savings in robotic arms and grippers, allowing for slimmer and more maneuverable designs
- Greater ergonomics in surgical tools, enhancing precision and comfort in delicate procedures
- Weight reduction in high-speed motors, optimizing performance and energy efficiency
Weight reduction in high-speed motors, optimizing performance and energy efficiency
At RC Microelectrónica, as the official distributors of BOGEN Magnetics for Spain and Portugal, we provide our clients with these cutting-edge solutions, supported by specialized technical assistance and guidance throughout the entire project cycle.
